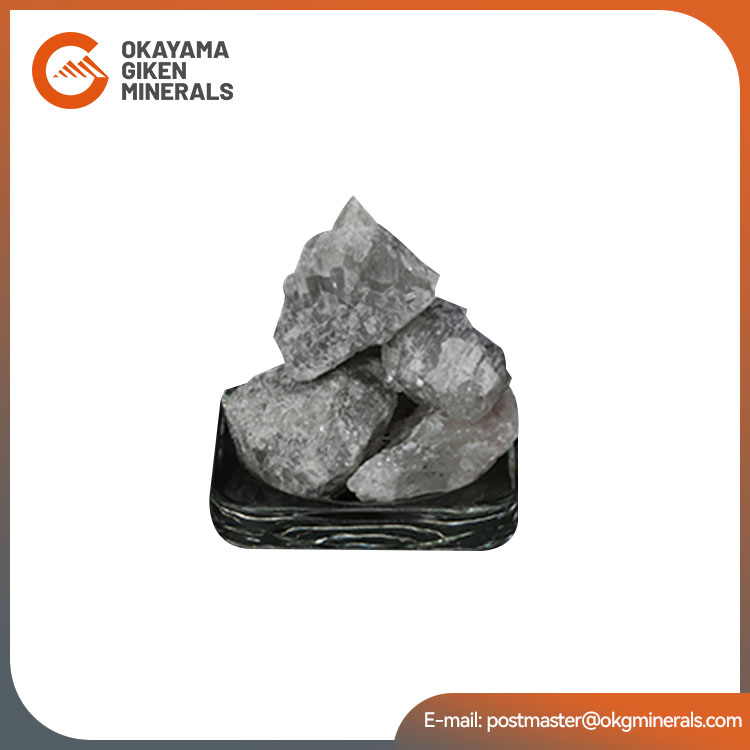

OKAYAMA GIKEN (Minerals) Co., Ltd specializes in high-quality fused magnesite made in China, capable of withstanding extreme temperatures exceeding 1600°C. Our Fused Magnesite factory is located in a region rich in high-quality magnesite resources. We produce Liaoning Haicheng-grade Fused Magnesite (FM), renowned for its high purity and excellent refractory properties. Our FM is exported to Europe year-round.meeting the stringent demands of refractory and ceramic industries.

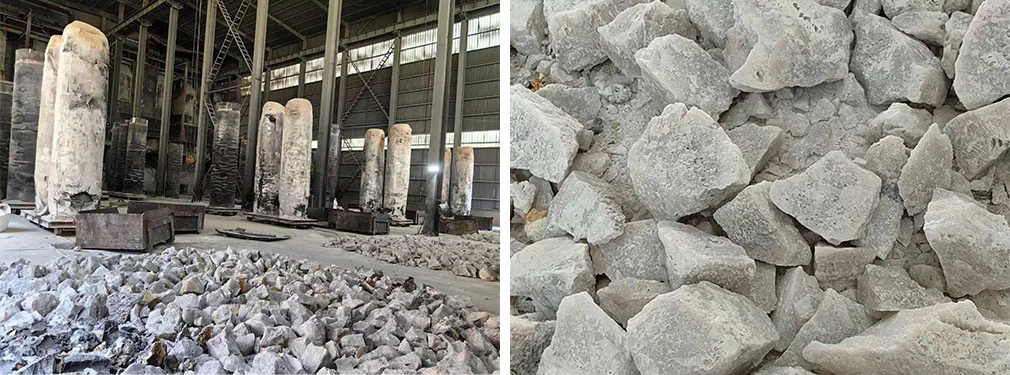

Fused Magnesia (FM) is produced by electrically melting caustic calcined magnesia, dead burned magnesia, or raw magnesite in an electric arc furnace. To achieve the optimal product quality, the melting temperature must exceed 2750°C. Due to its modified crystalline structure, fused magnesia offers superior performance compared to alternative materials.
Fused magnesia is categorized into White Fused Magnesia (WFM) and Brown Fused Magnesia (BFM):
White Fused Magnesia (WFM, White): High purity and excellent volume stability, making it suitable for higher temperatures and more demanding environments. It is mainly used in high-end refractory bricks and glass furnaces.
Brown Fused Magnesia (BFM, Brown): Characterized by large crystals, dense structure, and strong corrosion resistance, making it an excellent basic refractory material. It is widely used in steelmaking, electric arc furnaces, and cement kilns, offering high cost-effectiveness for general refractory and monolithic applications.
| Fused Magnesite (1:1) | |||||||
| Specification(%) | |||||||
| Brand (size0-150mm) | MgO min. | LOI max | SiO2 max. | CaO max. | Fe2O3 max. | Al2O3 max. | B.D.G/cm3 Min. |
| FM-96 | 96 | 0.30 | 1.5 | 1.8 | 1.2 | 0.4 | 3.42 |
| FM-97 | 97 | 0.20 | 1.1 | 1.4 | 0.9 | 0.3 | 3.45 |
| FM-97.5 | 97.5 | 0.20 | 0.80 | 1 | 0.8 | 0.25 | 3.48 |
| FM-98 | 97.9 | 0.2 | 0.7 | 1 | 0.7 | 0.25 | 3.5 |
| Fused Magneiste (2:1) | |||||||
| Specification(%)(CaO/SiO 2: 1min.) | |||||||
| Brand (size0-150mm) | MgO min. | LOI max | SiO2 max. | CaO max. | Fe2O3 max. | Al2O3 max. | B.D.G/cm3 Min. |
| SFM-96 | 96 | 0.30 | 1.1 | 2.2 | 1 | 0.4 | 3.42 |
| SFM-97 | 97 | 0.3 | 0.8 | 1.6 | 0.8 | 0.2 | 3.45 |
| SFM-975 | 97.5 | 0.20 | 0.7 | 1.40 | 0.65 | 0.2 | 3.48 |
| SFM-97.7 | 97.7 | 0.2 | 0.6 | 1.20 | 0.60 | 0.15 | 3.48 |
| SFM-98 | 97.9 | 0.2 | 0.5 | 1 | 0.5 | 0.15 | 3.5 |
| Fused Magnesite(Large Crystal ) color: white, grey, yellow mixed | |||||||
| Specification(%)(CaO/SiO 2: 1min.) Crystal size 800-1200um | |||||||
| Brand (size0-150mm) | MgO min. | LOI max | SiO2 max. | CaO max. | Fe2O3 max. | Al2O3 max. | B.D.G/cm3 Min. |
| LC-97 color mix | 97 | 0.2 | 0.75 | 1.5 | 0.75 | 0.2 | 3.4 |
| LC-97 color white | 97 | 0.2 | 0.75 | 1.5 | 0.75 | 0.2 | 3.43 |
| LC-975 color mix | 97.5 | 0.2 | 0.7 | 1.4 | 0.7 | 0.18 | 3.45 |
| LC-975 color white | 97.5 | 0.2 | 0.7 | 1.4 | 0.6 | 0.18 | 3.47 |
| LC-98 | 98 | 0.15 | 0.6 | 1.2 | 0.5 | 0.15 | 3.48 |
| LC-985 | 98.5 | 0.15 | 0.4 | 0.8 | 0.5 | 0.15 | 3.5 |
| LC-99 | 99 | 0.1 | 0.2 | 0.4 | 0.2 | 0.1 | 3.5 |
